Designing Experiences, Not Just Electronics
We transform how people interact with the world through creative 3C innovation.
At XzVision, we combine the agility of a dynamic startup with 15 years of deep industry expertise. We offer end-to-end OEM & ODM solutions backed by our own dedicated factory. From all of the world, we deliver speed, precision, and uncompromised quality—bringing your creative ideas to life while strictly protecting your intellectual property.
About Us
🎯 We don’t just manufacture electronics; we design experiences. Our mission is to transform the way people interact with the world through creative 3C innovation.✅ Agility Meets Wisdom As a dynamic 5-year-old enterprise, we move fast. Yet, our DNA is forged from 15 years of deep industry experience. This powerful combination allows XzVision to stay ahead of consumer trends while delivering the stability and quality assurance of an established manufacturer.🏭 Global Solutions, Vertical Control Serving clients across the US, Europe, and beyond, we understand that quality is non-negotiable. Supported by our own dedicated factory, we offer end-to-end OEM & ODM services. We protect your designs, ensure compliance with international standards, and bring your creative ideas to life with precision.📩 XzVision — Innovation you can trust. Our contact email: [email protected].🌏 Location: Kangfulai District, District D, Shunde District, Foshan City, Guangdong Province, China.

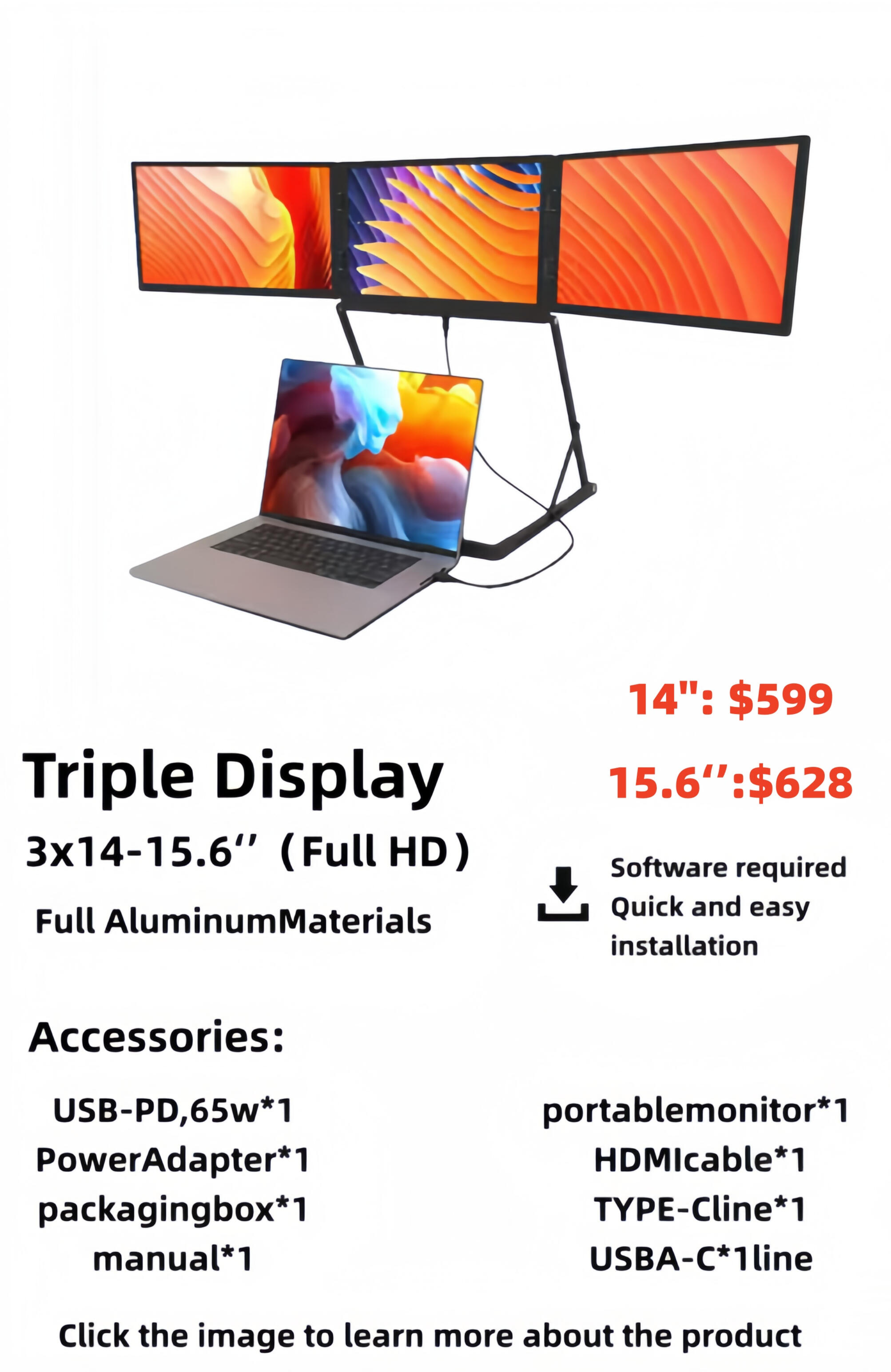

Triple Display 15.6''
Description:Parameters
Panel Size: 15.6" (16 : 9) Triple Screen
Panel technology:IPS
Color gamut:72% NTSC
Display Colors:16.7 M
Resolution:1920 x 1080p
Viewing angle: 85°/85°(Typ.)(CR≥10)
Brightness (Typ.):300(±30) Nits
Key:4 Keys: Power/Menu, Down/-, Up/+, Confirm/Exit
Speaker: 2 x 6 ꭥ 2W
Reflesh rate:60 Hz
Connectivity:1USB Type-C for triple monitors，1USB A-C + 1mini HDMI for triple
monitors， 3mini HDMI for each monitor directly
Fold Angle:0-360°
Net Weight:3.3kg
Cross Weight:4.5 kg
Package Size:467 *360 * 80 mm
Compatible systems:Windows, macOS, Linux
Operating Condition:Temperature:0°C-50°C Humidity:20%-80%
Storage condition:Temperature -20°C - +60°C Humidity: 5% - 90%，non-condensing
Power Charger:USB - PD，65 W
Certifications/Compliance:CE Mark，RoHS Compliant,FCC Mark
Triple Display 14''
Description:Parameters
Panel Size: 14" (16：10) Triple Screen
Panel technology:IPS
Color gamut:72% NTSC
Display Colors:16.7 M
Resolution:1920 x 1200p
Viewing angle: 85°/85°(Typ.)(CR≥10)
Brightness (Typ.):250(±30) Nits
4 Keys: Power/Menu, Down/-, Up/+, Confirm/Exit
Speaker: 2 x 6 ꭥ 2W
Reflesh rate:60 Hz
Connectivity:1USB Type-C for triple monitors 1USB A-C + 1mini HDMI for
triple monitors 3 HDMI for each monitor directly
Fold Angle:0-360°
Net Weight:2.7kg
Cross Weight:3.5 kg
Package Size:44034080 mm
Compatible systems:Windows, macOS, Linux
Operating Condition:Temperature:0°C-50°C Humidity:20%-80%
Storage condition:Temperature -20°C - +60°C Humidity: 5% - 90%，noncondensing
Power Charger:USB - PD，35W
Certifications/Compliance:CE Mark，RoHS Compliant,FCC Mark

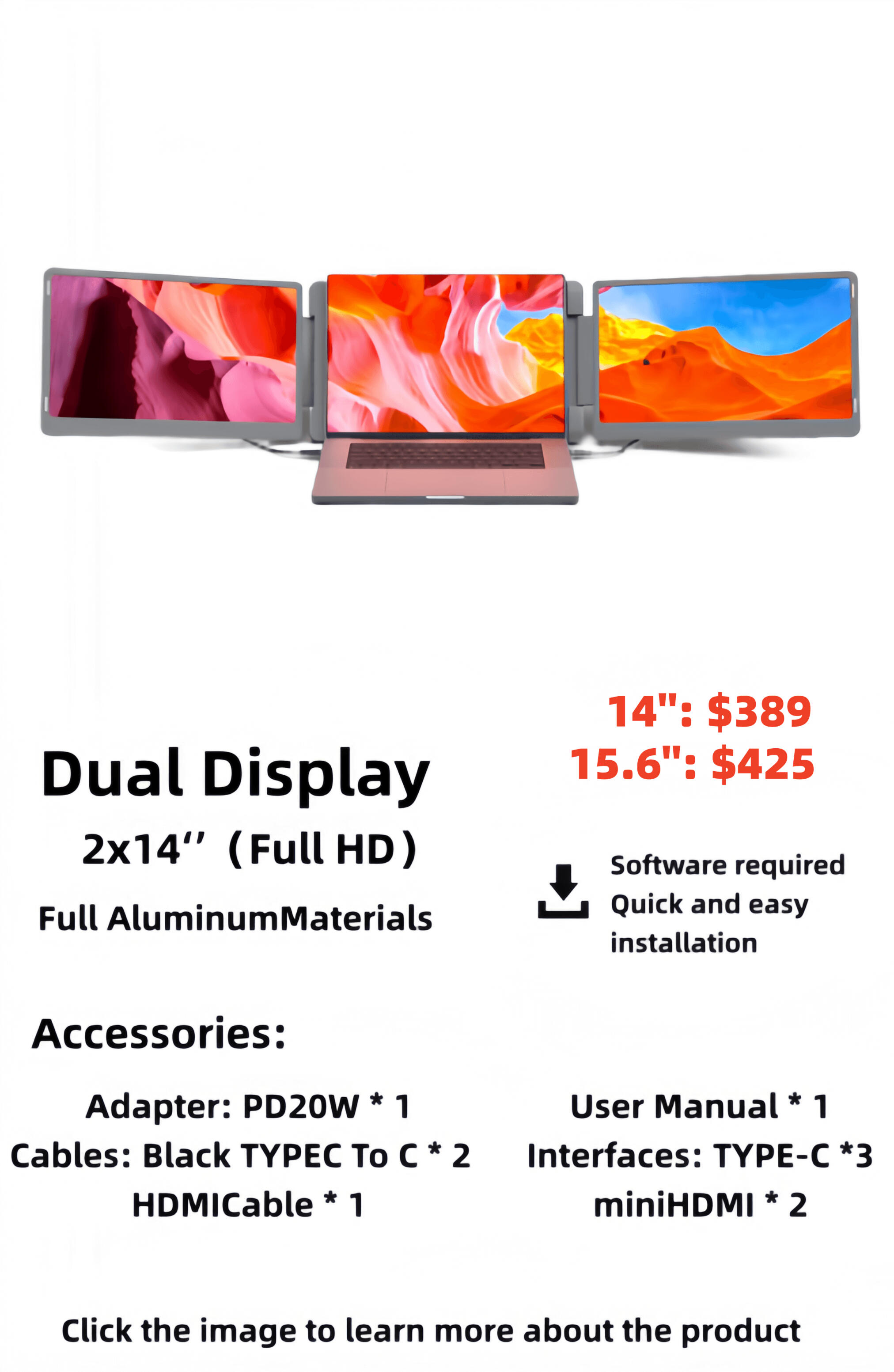

Dual Display
Screen Size: 14 Inch
Resolution: 1920*1080P (Full HD)
Contrast Ratio: 700:1 (Typ.)
Aspect Ratio: 16:9
Display Colors: 262K(6-bit)
Brightness: 250cd/m² (Typ.)
Color Gamut: 62% sRGB
Color Temperature: 6485K
Refresh Rate: 60Hz
Response Time: 6ms
Viewing Angle: 89/89/89/89 Degrees (Typ.) (CR≥10)
Key:Power Key (Menu Key); Up; Down
Speakers: /
1. Supports Windows computers to achieve Triple-Screen Dual-Display / Triple-Screen Extended
Display by connecting the monitor via a single Type-C cable or HDMI cable + USB cable;
2. Supports Mac computers to achieve Triple-Screen Dual-Display by connecting the monitor via a
single Type-C cable or (HDMI cable + USB cable);
3. Supports some Mac computers with M1/M2/M3 PRO/MAX chips to achieve Triple-Screen
Extended Display by connecting the monitor via 2 Type-C cables;
5. The upper and lower dual screens can achieve Waterfall Screen (Merge Mode) via a toggle button.
Dual Display
Product Name:K-156ACSZ
display resolution:19201080
brightness:250cd/m² (Typ.)
Refresh frequency: 60GHz
Display area：344.16(horizontal)×193.59(vertical) mm
Contrast：800:1 (Typ.) (TM)
Response time：30 (Typ.)(G to G) ms
Color gamut：64% sRGB
color temperature：6485K
Viewing angle: 89/89/89/89 (Typ.)(CR≥10)
Interface Type: Mini HDMI2、TYPE-C power supply1、TYPE-C data transmission2、
supporting device：Smartphones, IPhones, Apple computers, iPads Laptops or tablets that support a
Type-C connector or Lighting to HDMI connector (all devices with a full-featured Type-C port or
HDMI output port)
1. Support Windows computers to connect the monitor through a single Type-C cable or HMI cable *
USB cable to achieve three screens and two displays/three screens with different displays;
2. Support MAC computers to connect monitors with a single TyPe-C cable or (HMI cable+USB
cable) to achieve three screens and two displays;
3. Support partial MAC (MI/2/3) PRO and MAX chip computers to achieve three screen abnormal
display by connecting the monitor with two Type-C cables:
4. Waterfall screen (merge mode) can be achieved through the search button

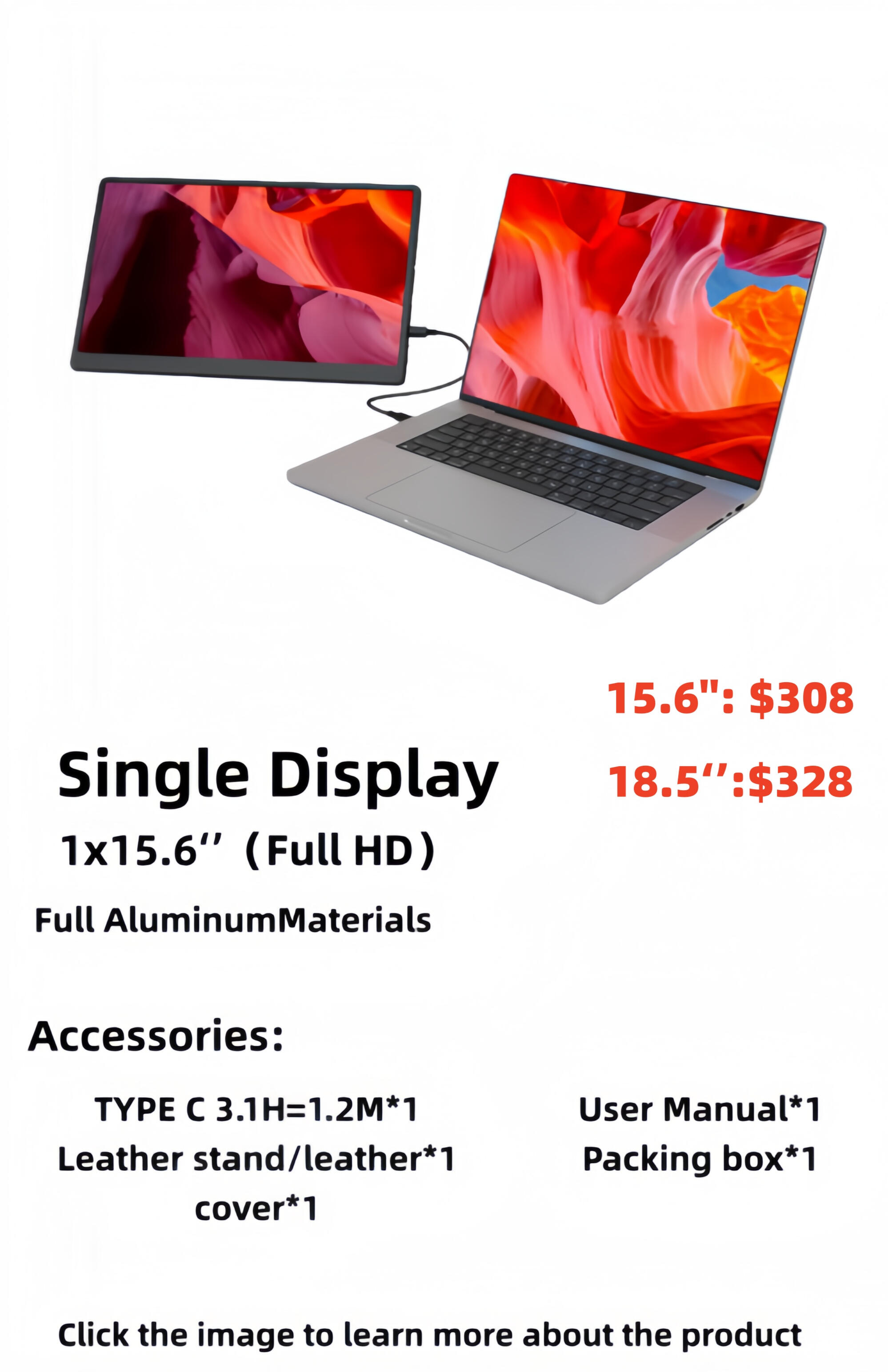

Single Display
Module Name.: J3
Panel Size: 15.6''
Aspect Ratio: 16:9
Panel Type: IPS
Color gamut:262K, 45% sRGB
Resolution: 1920(RGB)×1080, FHD
Brightness (Typ.): 250cd/m2
Scanning Frequency: 60 Hz
Contrast ratio: 1000:1 (type) (TM)
Response Time(Typical):30ms
View Angles：85/85/85/85 (Typ.)(CR≥10)
Key：Role key: Menu > < EXIT, power key
Input Interface：TYPE C-C*1
Shell material：Aluminum alloy, Leather cover
